SUNLIT SLIM – NEW PRODUCT!

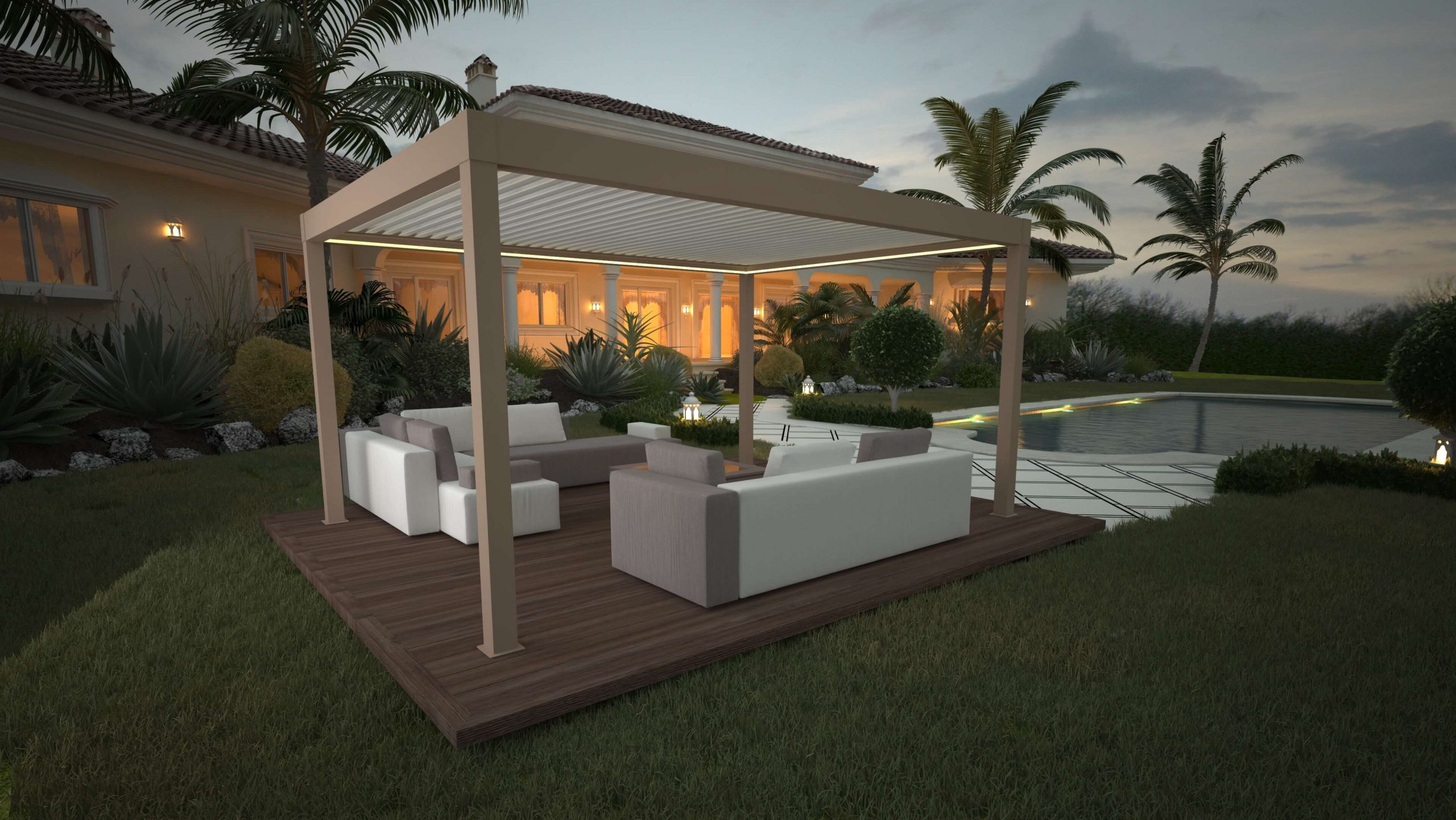

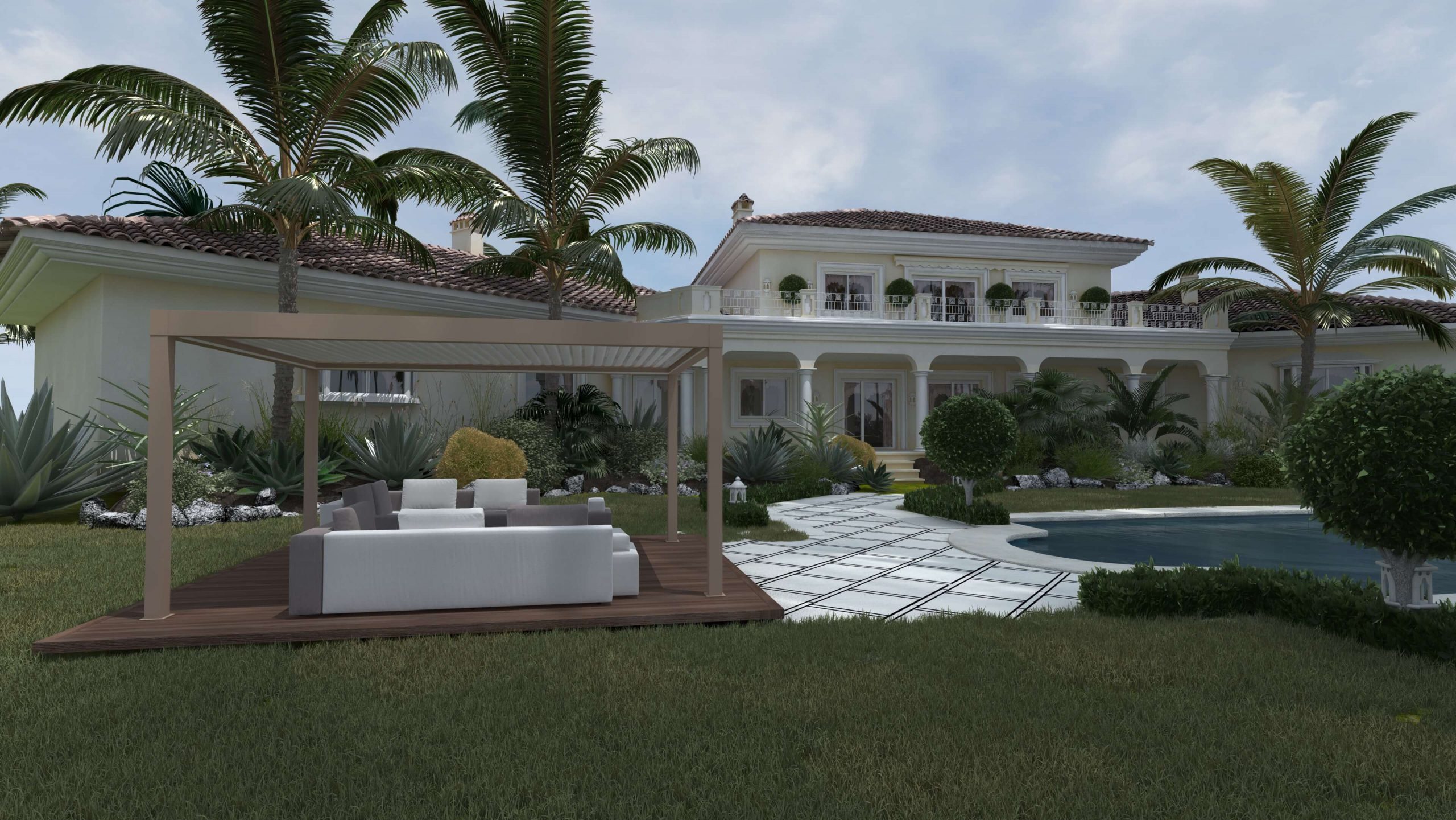

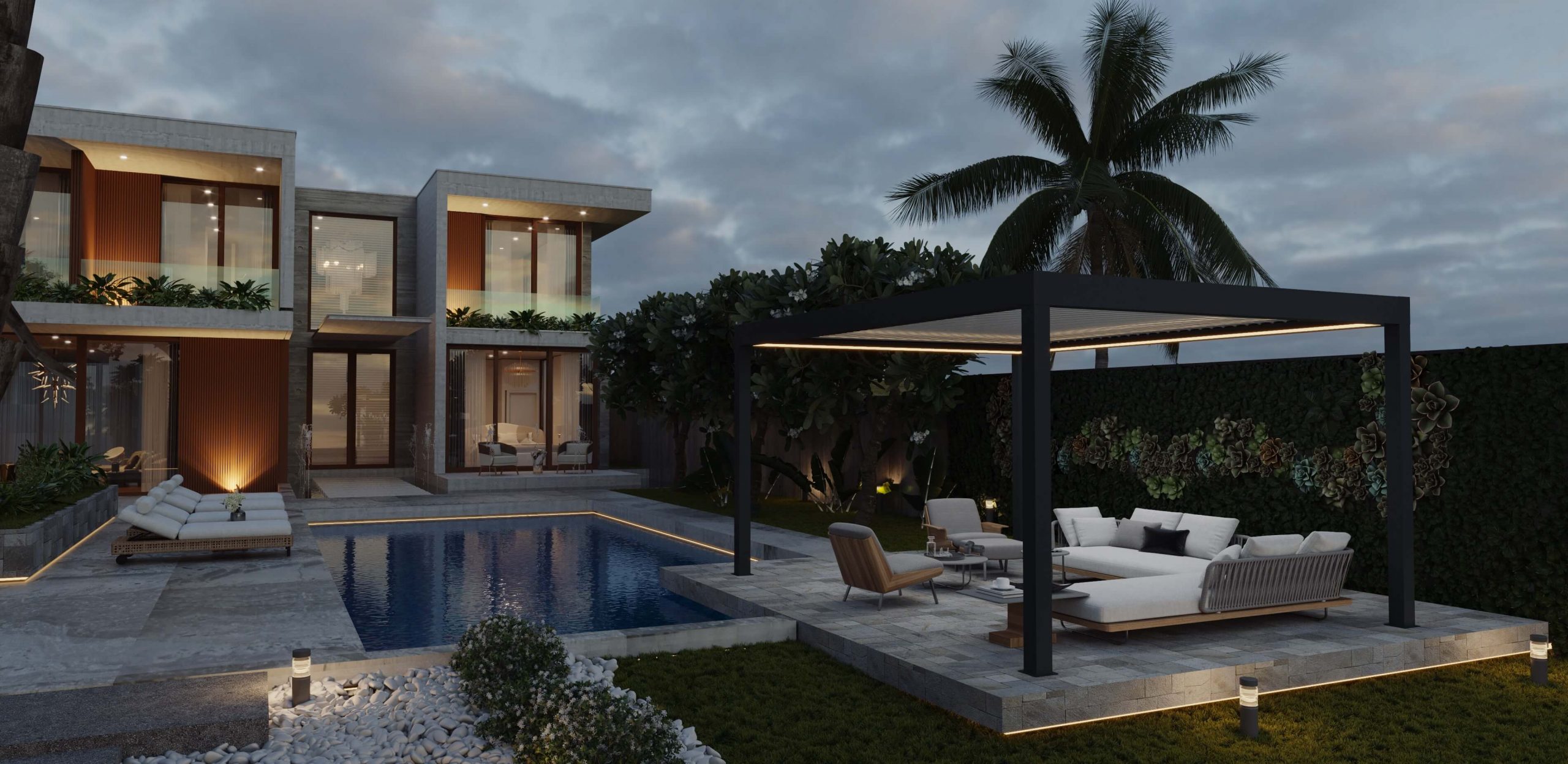

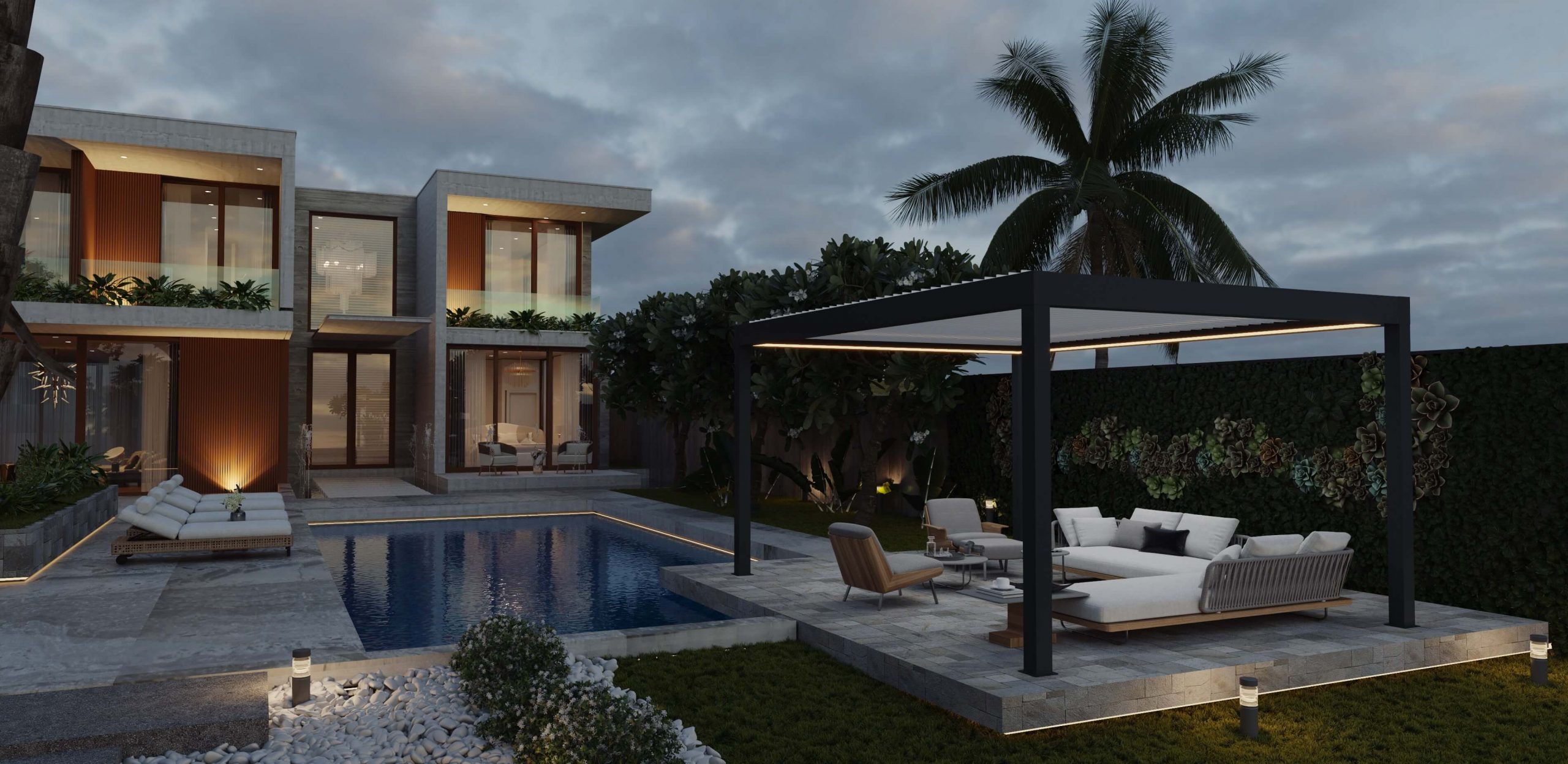

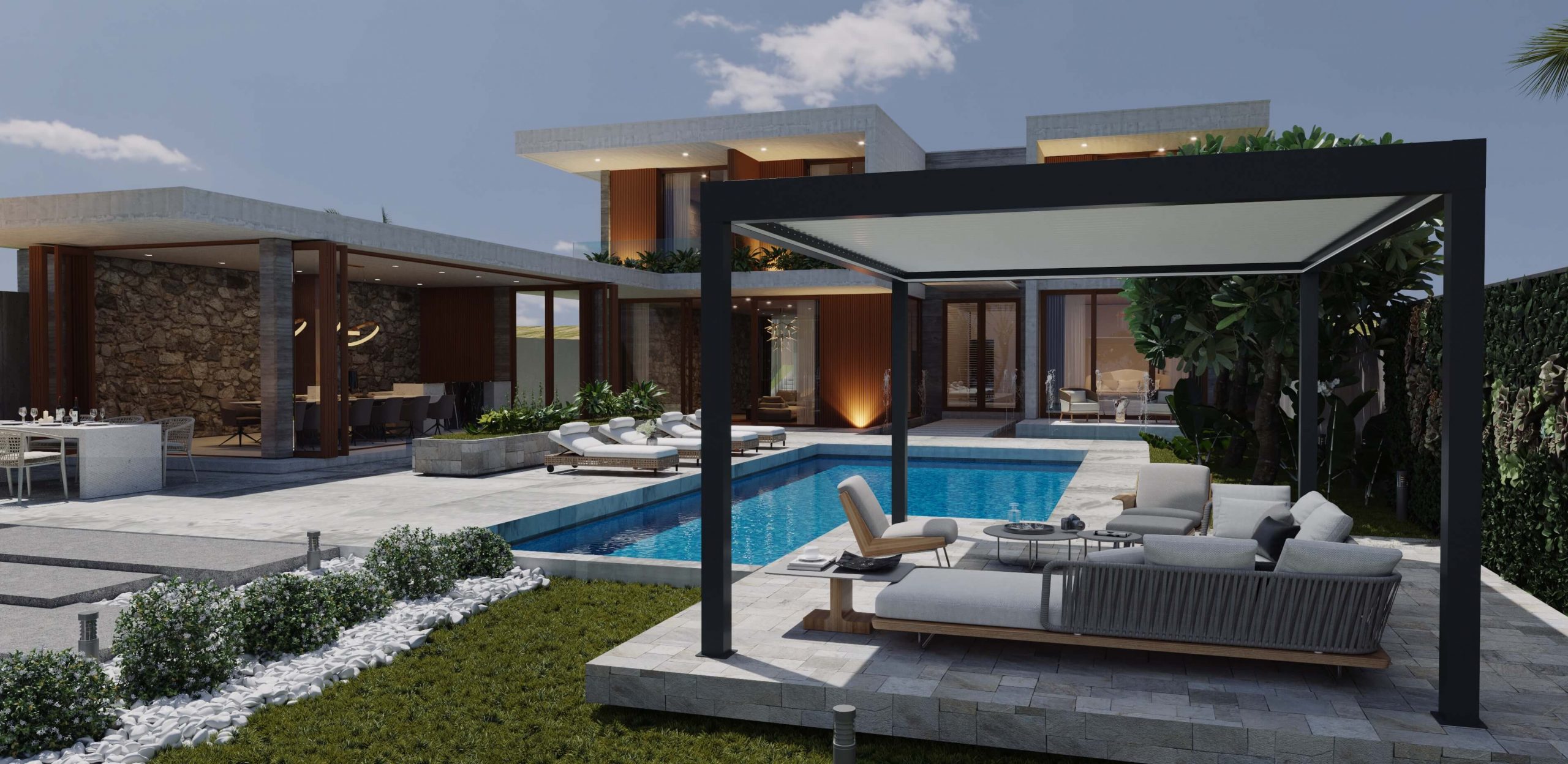

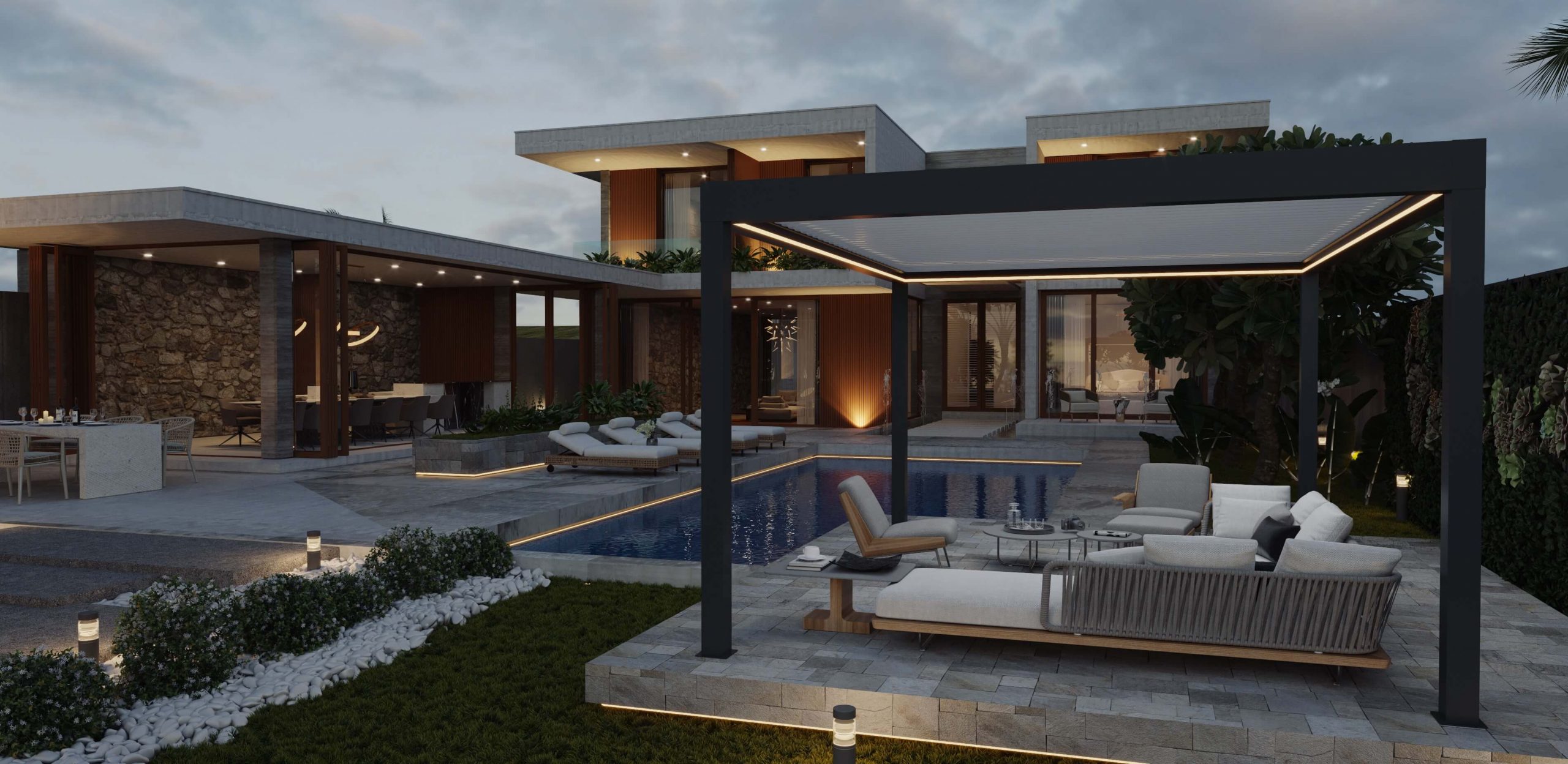

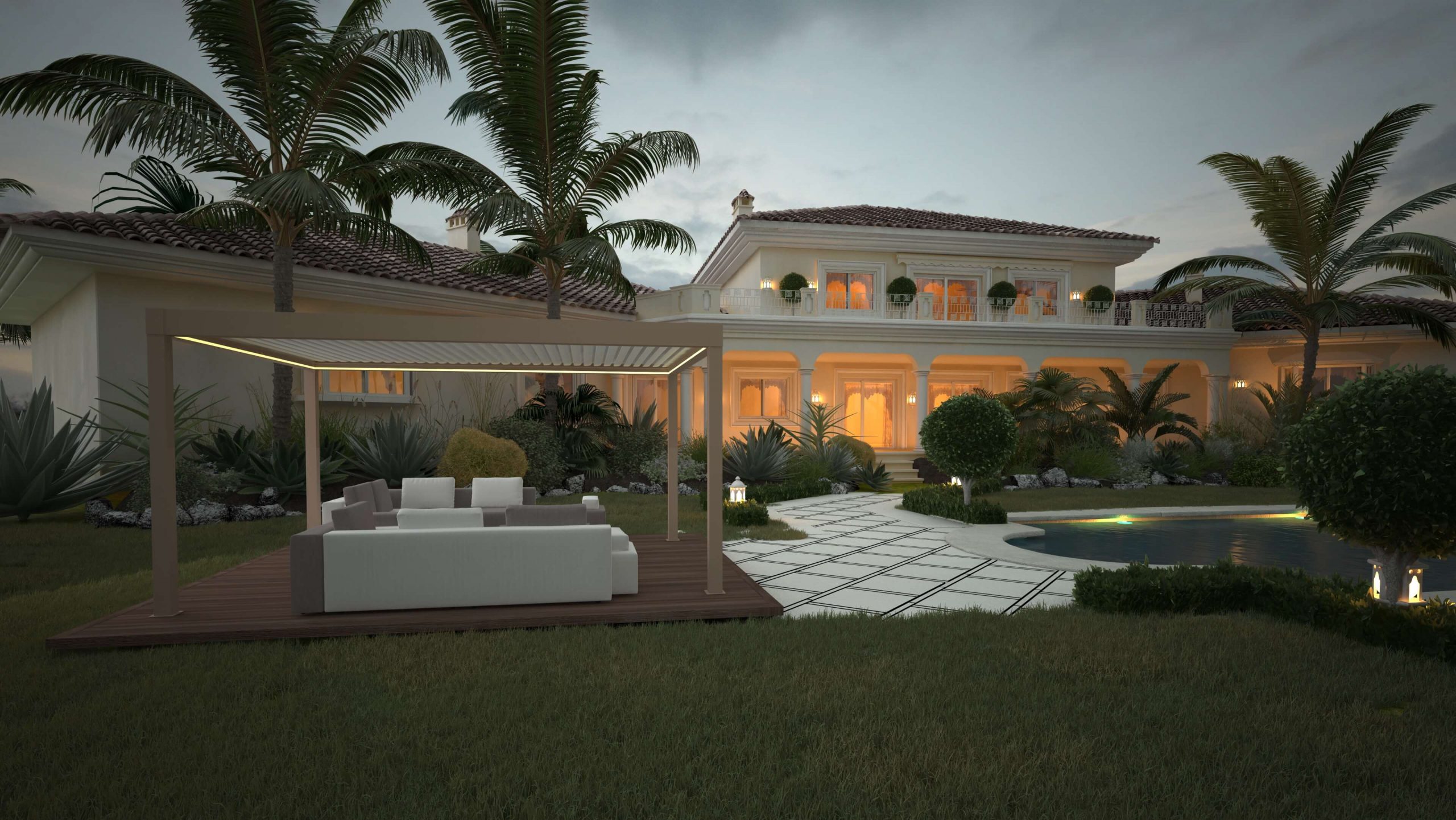

With its manual and motorized options, SUNLIT SLIM Pergola provides regulation of natural temperature with microclimate with minimum energy consumption. With its structure consisting entirely of aluminum, it maintains its form for many years against the negativities of time.It can be adapted to the existing architecture or implemented as a standalone system.
PRODUCTS
We'll Call You!
Leave your contact information and we will call you as soon as possible.

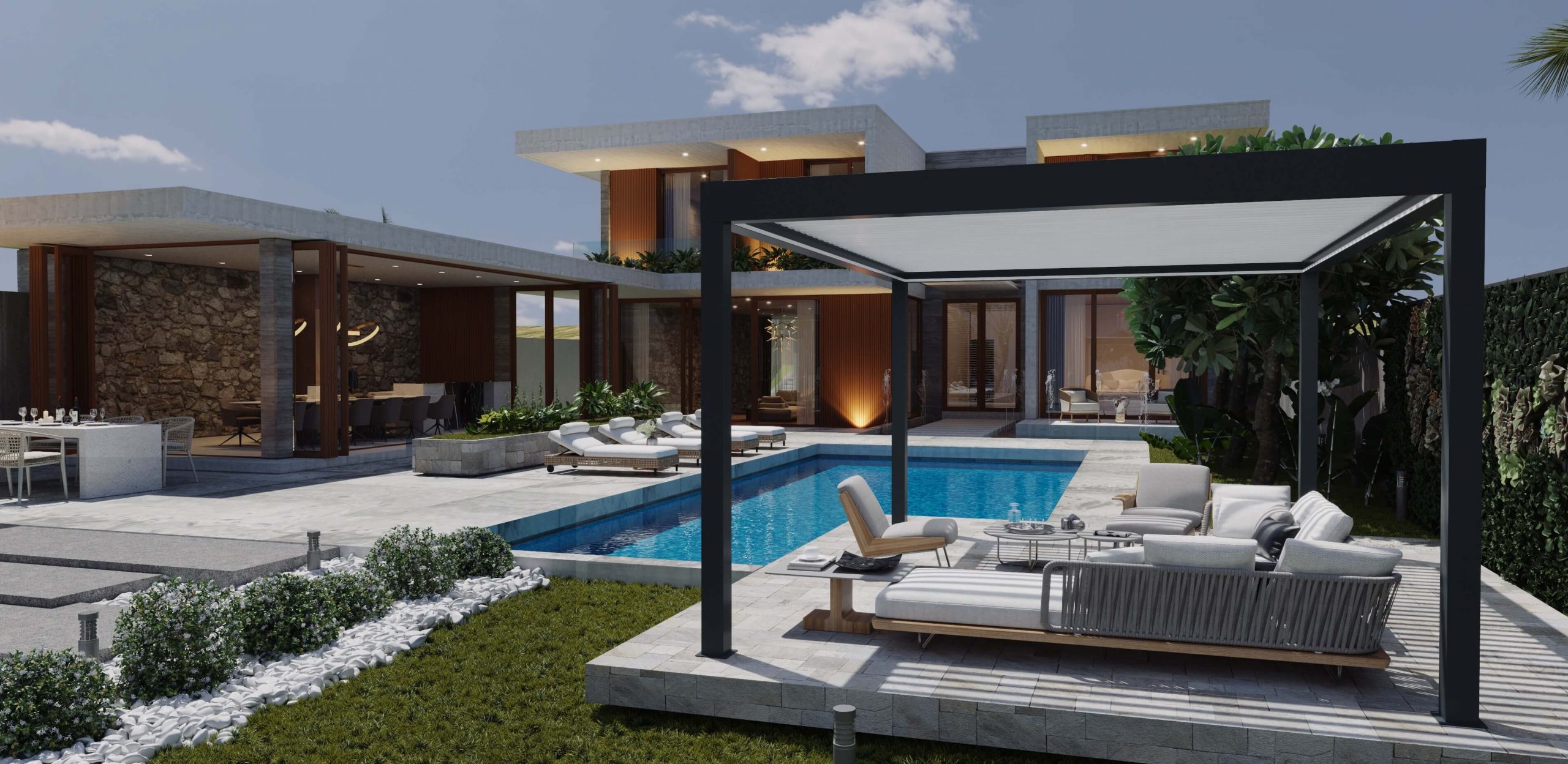

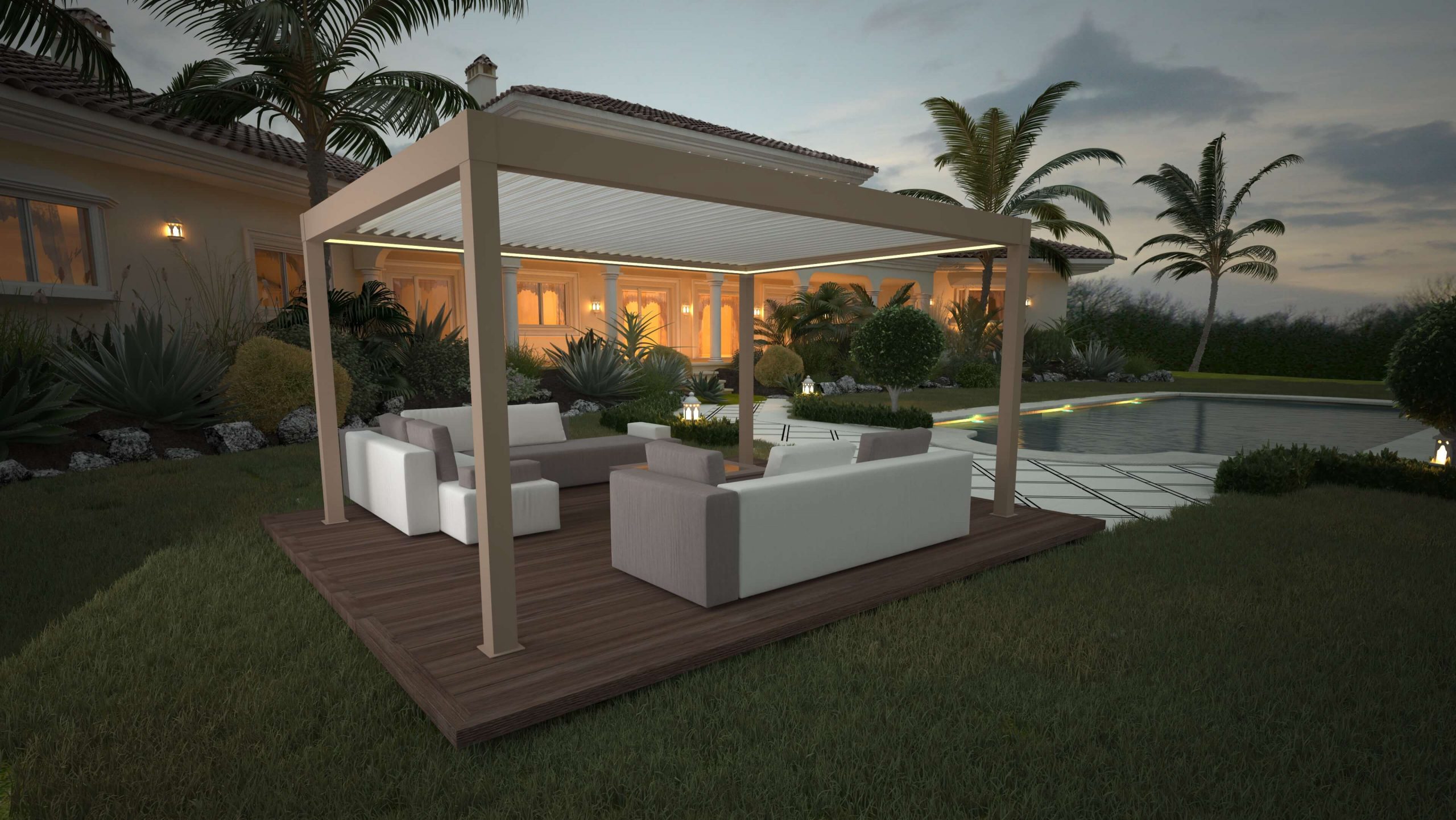

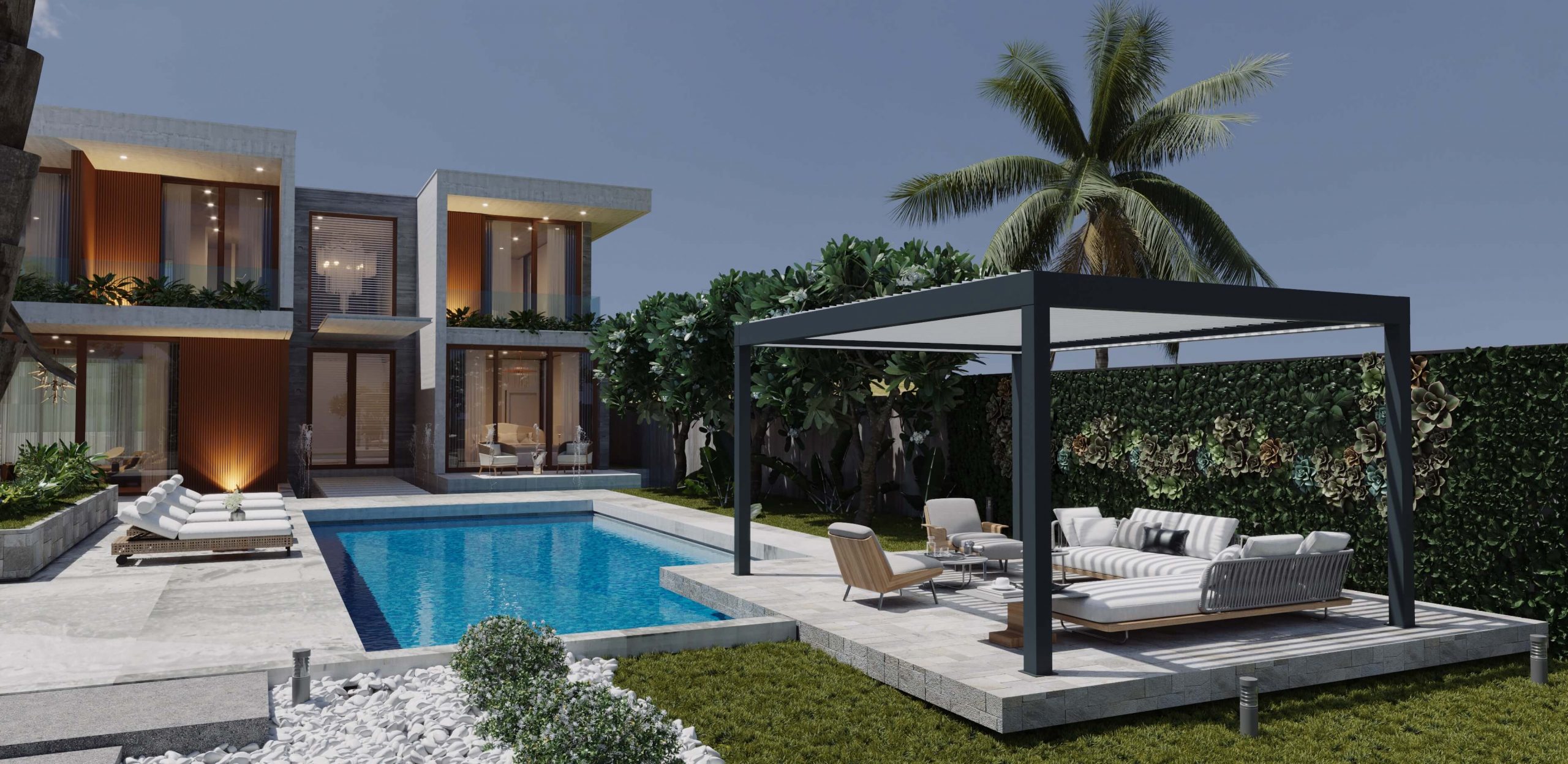

SUNLIT SLIM Pergola provides the regulation of its natural temperature with microclimate with minimum energy consumption. With its structure consisting entirely of aluminum, it protects the forum for many years against the negativities of time. It can be adapted to the existing architecture or implemented as a standalone system.
Thanks to the polyurethane filling sprayed into the lamellas, the ambient temperature is balanced by keeping the cold and wind out. The adjustable lamels of the system provide a natural microclimate when opened and allow you to be protected from direct sun rays by adjusting the angle according to the sun. Lamels that are interlocked in the closed position form a completely sealed system by transmitting rainwater through their built-in channels.
By integrating perfectly with zip curtain and guillotine window systems, you can benefit from your space in four seasons

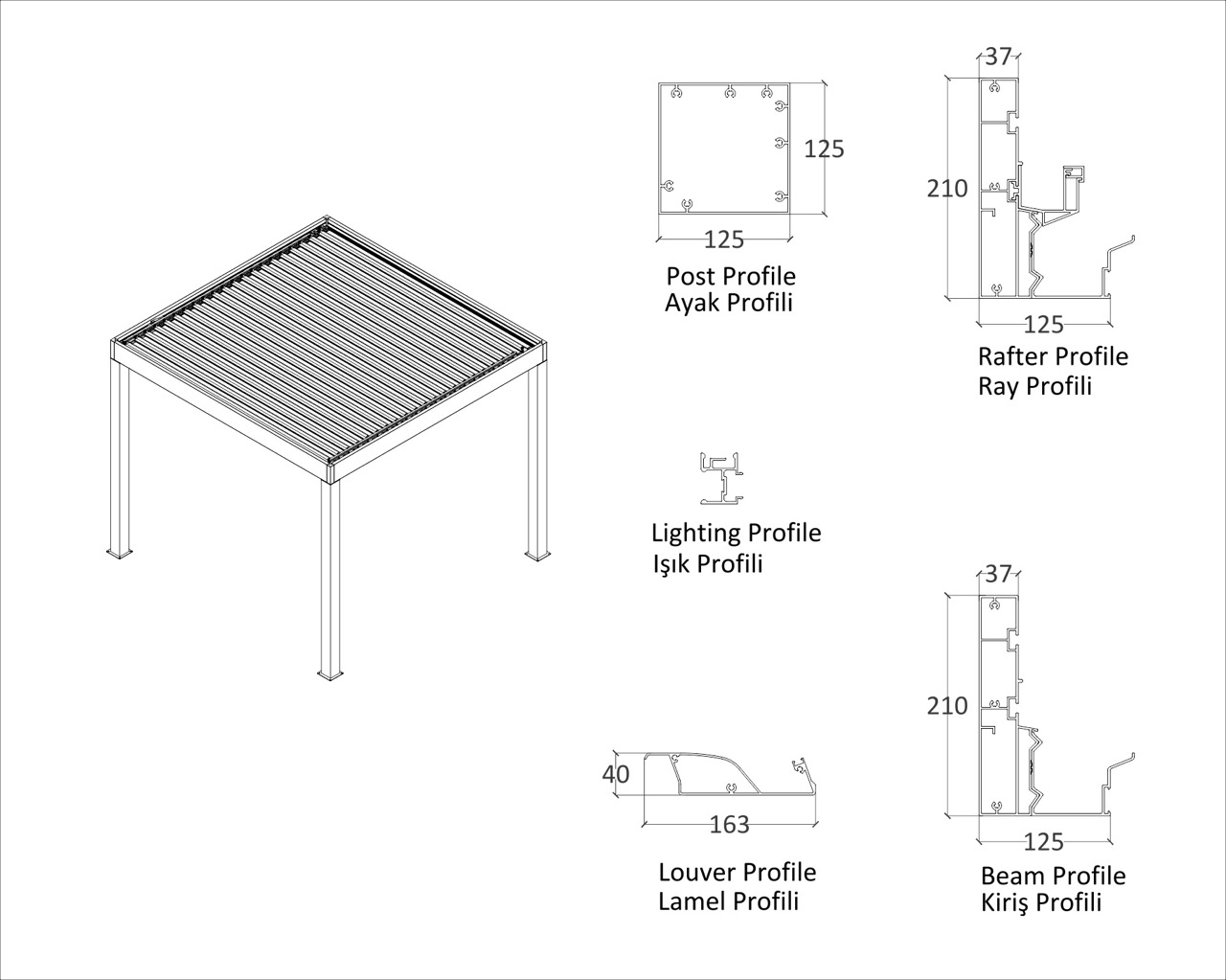

The sunroof system can be safely installed as a single module on 4 legs with dimensions of 360×474 cm.
WIND RESISTANCE CLASS
– Lamels will be able to open even under wind pressure of BEAUFORT 7 (55-62 km / h).
– When the lamels are in the closed position, the whole system will be resistant to wind pressure of BEAUFORT 5 (50-62 km / h).
SNOW LOAD
-Sunroof system 20 kg per m². has the capacity to carry a snow load.
RAIN SPECTRA
-The sunroof system has a maximum of 35 seconds of complete waterproofing.
-Lamels are opened by rotating in the axial direction up to 95 degrees.
- IT-52 LINEAR ACTUATOR TYPE
- Voltage: 24 vdc
- Maximum Load at Thrust: 6,000 N
- Max Load on Tow: 6,000 N
- Self-locking force: 8,000 N
- Stroke: 220 mm
- No-load Speed: 5.3 mm/s
- Full Load Speed: 4 mm/s
- Projection Class: IP66/IP67 M
- Outer Tube Material: 6063 Aluminum
- Lead Screw Material: Trapezoidal, Steel
- Min. Actuator Installation Size: 545 +/- 2 mm
- Max. Installation Size of the actuator: 765 +/- 2 mm
- Duty Cycle: S2/18 2 mins 18 min. Closed
- Cable Length: 1.5 meters
- Color: Black
- Hall Sensor + Limit Switch
ABOUT THE MATERIAL
- RGB Lighting : 1080 MA 13 volt/m
- Led Strip Lighting : 90-110 Lumens 11 Volt/m, Warm White
- Stainless Steel Quality : AISI 304
- Aluminum Quality : Extrusion F25 6063-T6
SUITABLE FOR ALL SEASONS
Retractable pergola systems can be easily applied in any area that is planned to be used in all seasons.
FUNCTIONAL DESIGN
Mode Solar Design allows you to create different outdoor spaces with functional design options suitable for your space.
DURABILITY
It is very sturdy thanks to the durable aluminum material. Wind, Storm etc. It is suitable for all natural conditions.
